HSAW Linepipe .

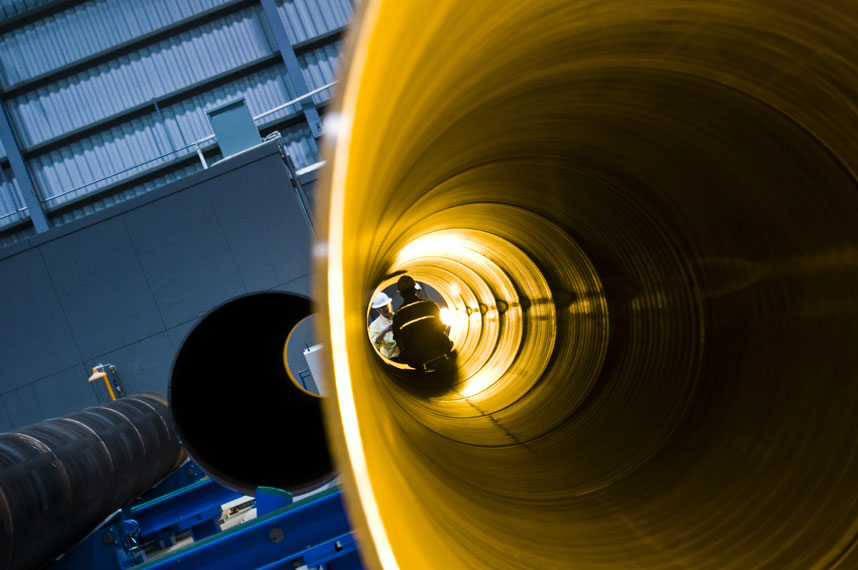

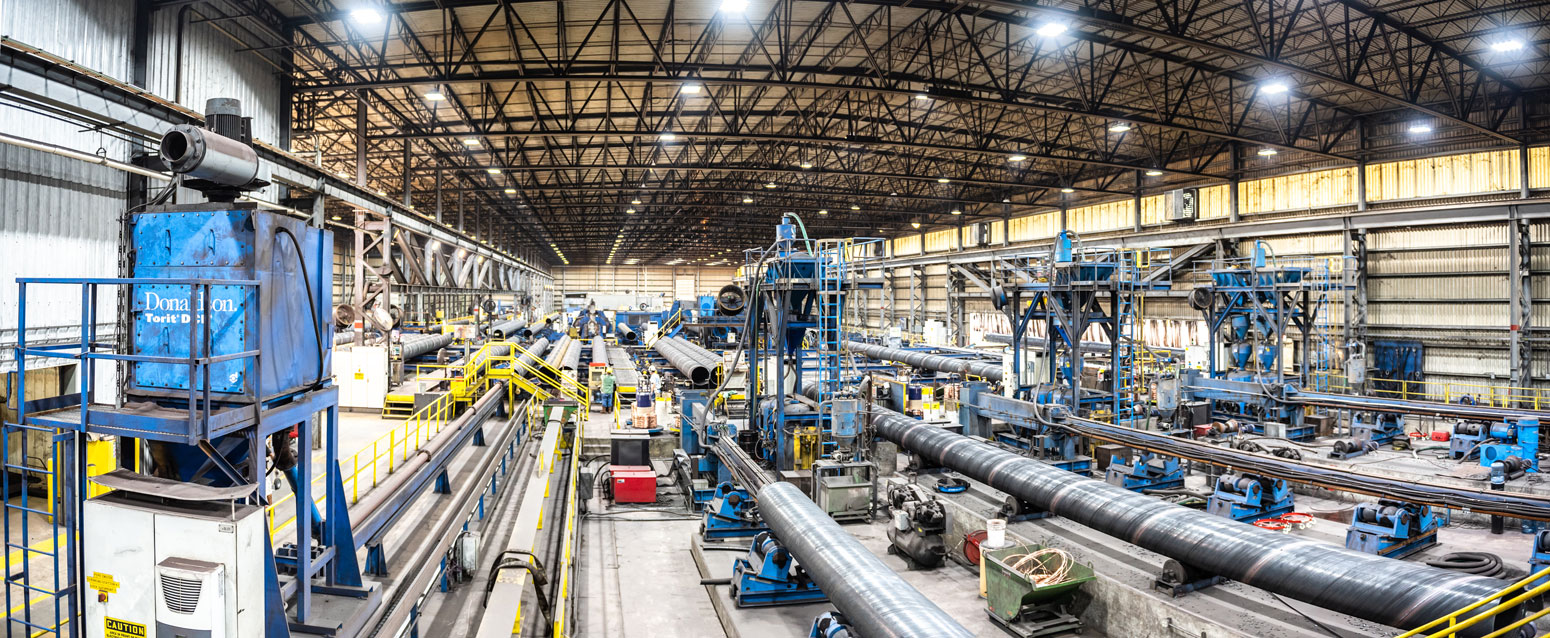

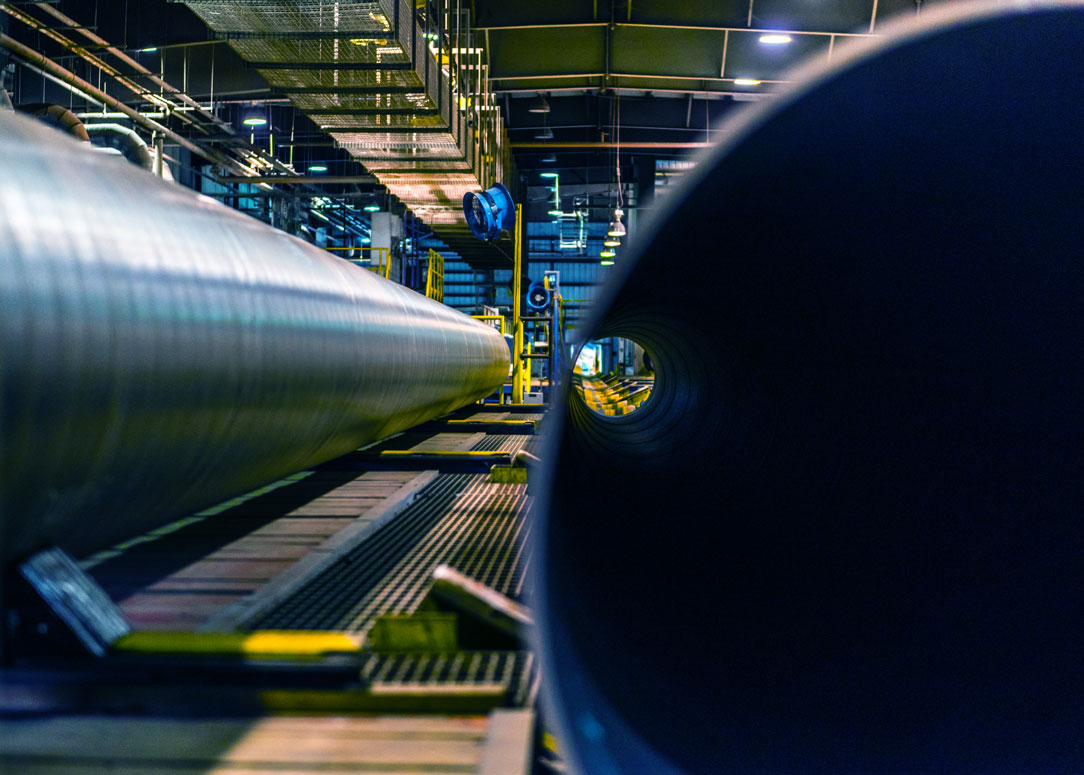

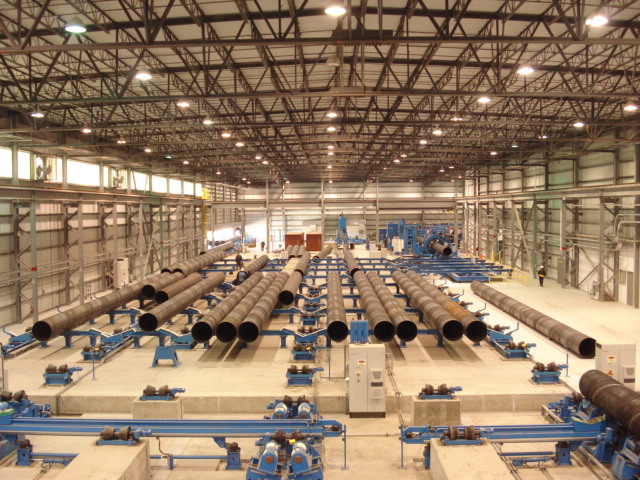

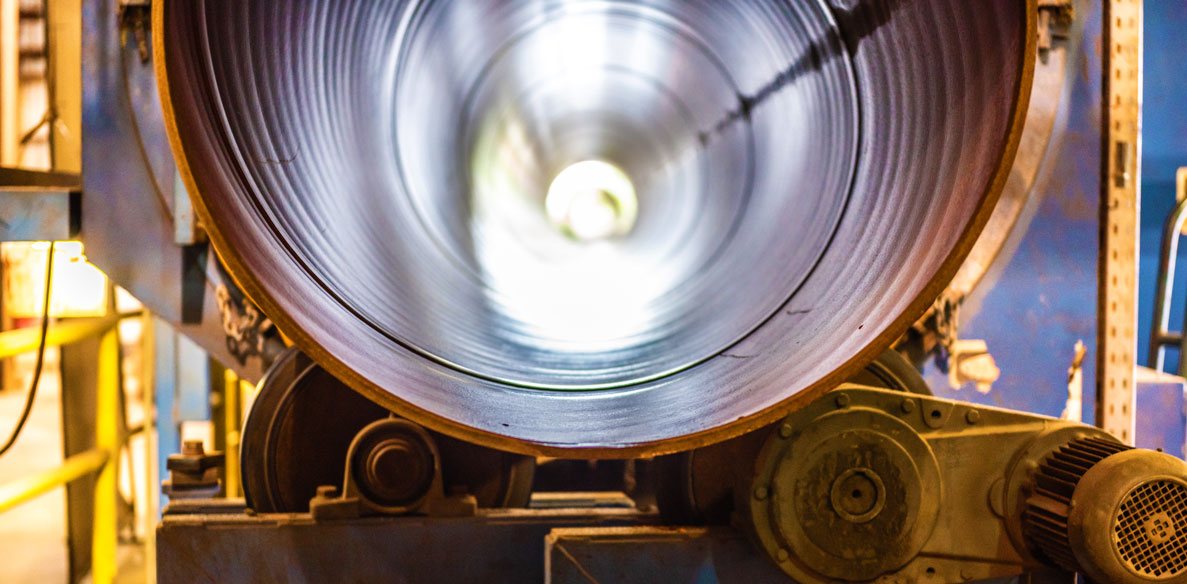

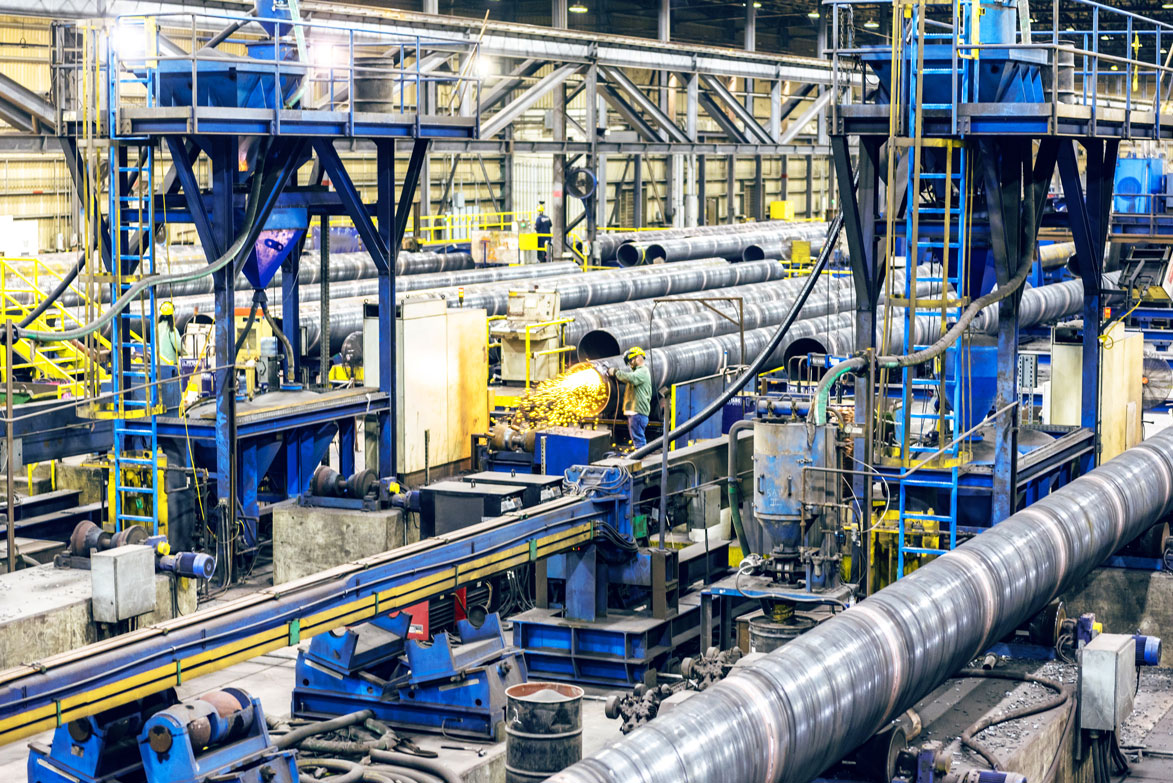

Our spirally-welded pipes are manufactured with care and high quality in our Borusan Berg Pipe facility in Mobile, AL, in line with the needs of our business partners in North America.
Spirally welded steel pipes, called HSAW or SSAW, are used in many areas and have the advantage of being produced in large diameters. These pipes are mainly used to transfer fluids such as natural gas, oil, and water over long distances, allowing us to reach the resources we need in our daily lives. HSAW pipes can also be used as piling pipes in the construction sector for land reclamation projects and port construction and expansions. After being produced, they are delivered with internal coatings specific to the fluid that will pass through them and external coatings tailored to the environmental conditions in which they will be installed.

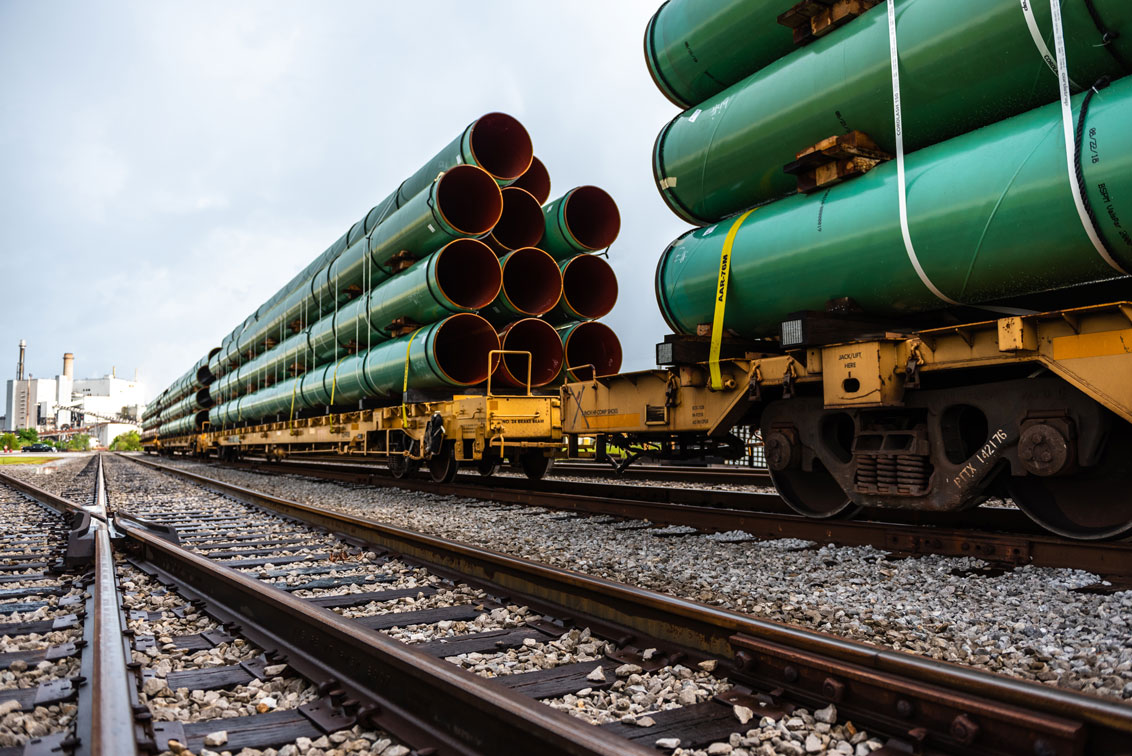

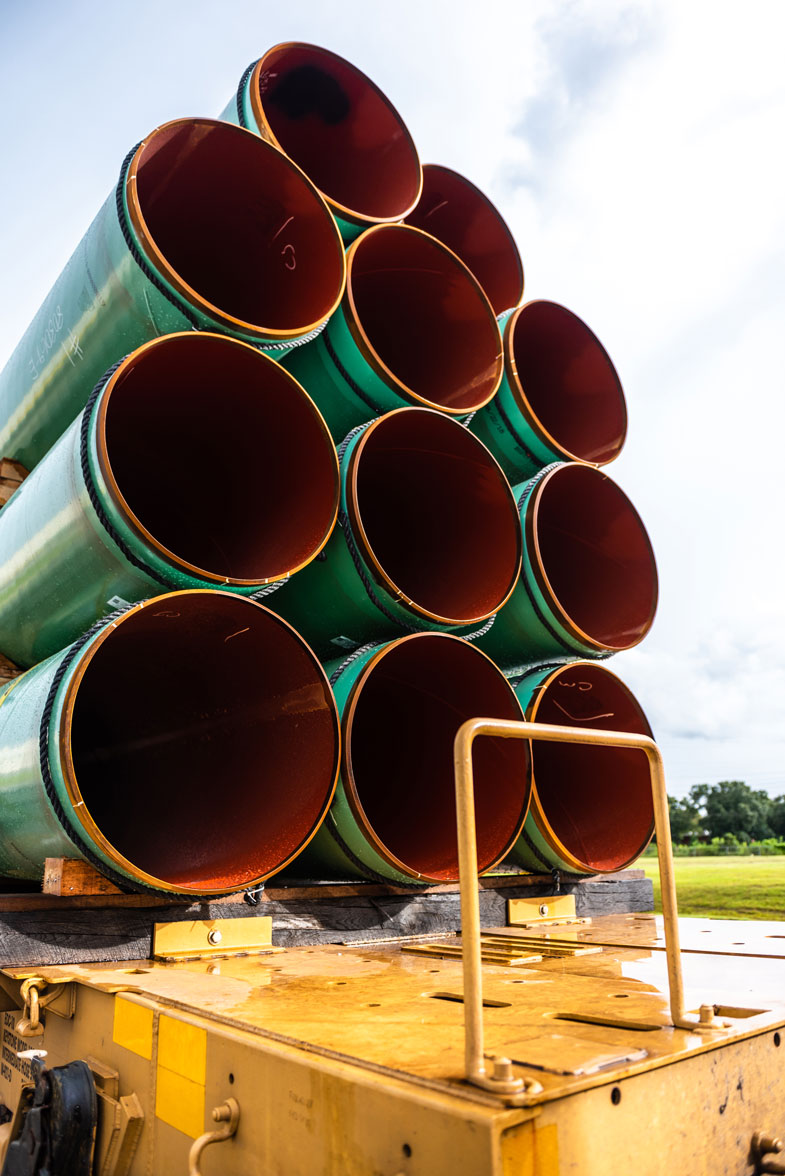

Spirally welded steel pipes produced in Borusan Berg Pipe facilities are delivered with quality and different delivery options that can best meet the needs of our business partners, with many coating options, such as epoxy, polyethylene, and polypropylene. In the raw material supply for HSAW Line Pipe production, high-toughness steel (API PSL1 -PSL2) with a homogeneous material structure and reliable and correct mechanical properties is used. The raw material we use can be traced from the beginning of the process to the end.
| Outside Diameter | Thinkness | Length |
| 508 mm - 3.048 mm | 5,16 mm - 25,4 mm | Single lengths up to 24,50 m* |
| 20’’ - 120’’ | 0,203’’ - 1’’ | |
| * For pilling pipes single lengths up to 55 m | ||
- API 5L
- PSL1 - PSL2 GRA - X80 (N, M)
- CSA Z245.1 : Requirement of category I, II, III
- ISO 3183
- L555 - X80 (N, M, ME)
- Abrasion Resistant Overlay (ARO) OD Coating: API 5L7, CSA Z245.20, NACE RP 0394, AWWA C213
- FBE (Fusion Bonded Epoxy) OD Coating: API 5L7, CSA Z245.20, NACE RP 0394, AWWA C213
- Polyethylene OD Coating: DIN 30670, TS 5139, NF A 49-710, UNI 9099, EN ISO 21809-1
- Polypropylene OD Coating: DIN 30678, NF A 49-711, EN ISO 21809-1
- Flowcoat Epoxy ID Coating: API RP 5L2, EN 10301
- Solvent Free Epoxy (SFE) ID Coating: AWWA C 210
- Glass fibre reinforced plastic GRP OD Coating
- API 5L
- API Q1
- ISO9001
- ISO14001
- ISO45001
- EN ISO/IEC 17025
- EN ISO 3183
